Tranter SUPERCHANGER® Plate Heat Exchanger

Tranter SUPERCHANGER® plate heat exchangers are gasketed plate-and-frame heat exchangers designed for efficient heat transfer between two media in industrial, commercial, process, marine, and energy-related systems.

The SUPERCHANGER® product family uses a modular plate-and-frame design that allows the heat exchanger to be configured around the thermal requirements, flow characteristics, pressure drop considerations, and service needs of the application.

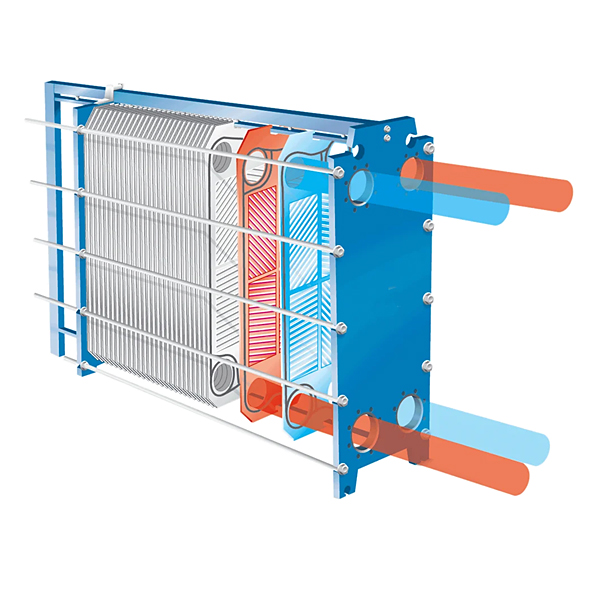

Process Controls Corporation - Tranter SUPERCHANGER® Plate Heat Exchanger

This gasketed plate heat exchanger family includes multiple plate series designed for different operating conditions and process requirements. Available series include GT, GX, GC, GL, GF, and GD configurations, each supporting specific application needs such as close-temperature-approach duties, unbalanced flow conditions, low pressure drop requirements, wide-gap passage needs, and double-wall separation where fluid intermixing must be avoided.

SUPERCHANGER® heat exchangers are commonly used where facilities need compact, serviceable heat transfer equipment for heating, cooling, heat recovery, process temperature control, and fluid-to-fluid thermal exchange.

The plate-and-frame construction allows the unit to be adapted through plate selection, gasket arrangement, and frame configuration, while maintaining the technical distinction of a gasketed plate heat exchanger rather than a shell-and-plate or welded block design.

Key Characteristics

Gasketed plate-and-frame heat exchanger construction
Modular design concept for application-specific configuration
Multiple plate series available for different thermal and hydraulic requirements
Plate options designed to support a variety of flow and heat transfer conditions
Gasket/bleed port design intended to help prevent fluid intermixing when properly gasketed and assembled
Series options for close-temperature-approach applications, low pressure drop applications, wide-gap duties, and double-wall separation needs
Serviceable plate-and-frame format for applications where access to the plate pack is an important selection factor

Ideal Applications

Industrial heat transfer
Process heating and cooling
HVAC heating and cooling systems
Petrochemical process applications
Chemical plant heat transfer
Refinery and gas processing systems
Data center cooling support
Pulp and paper process heat recovery
Ethanol and process stream heat recovery
Applications involving particulates where wide-gap plate designs are appropriate
