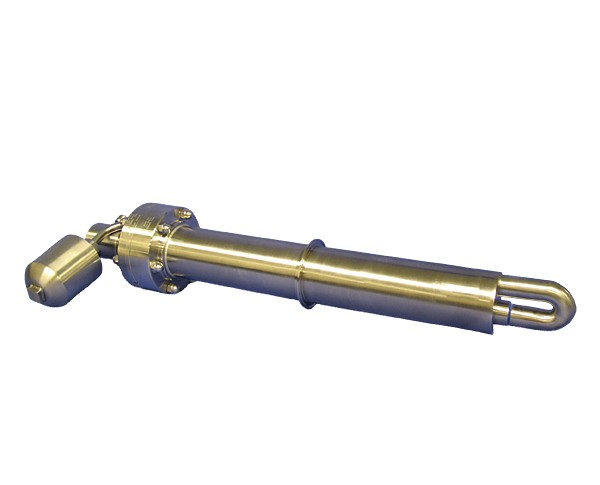

The Canty Process Technology CrystalScope™ PAT Particle Sizing System is an in-vessel, vision-based analyzer for monitoring crystal development in a reactor from nucleation through full growth.
The system provides real-time, two-dimensional particle size and shape analysis across a range of 0.7 µm to 680 µm while allowing operators to visually verify crystal conditions without using multiple probes.
High-speed imaging, adjustable optics, uniform fiber-optic backlighting, CantyVisionClient™ image analysis software, and the included Canty Vector System support crystal distribution, count, density, and seeding analysis.
Available process outputs can be configured for integration with temperature and vacuum controls during critical stages of crystal growth.
Key Characteristics
- In-vessel crystal measurement within a reactor
- Real-time monitoring from nucleation through full crystal growth
- Particle size analysis range of 0.7 µm to 680 µm
- Two-dimensional crystal size and shape analysis
- High-speed imaging with adjustable shutter speed
- Ethernet-controlled magnification, calibration, and focus settings
- Uniform fiber-optic cold backlighting for crystal silhouettes
- Visual verification of the crystallization process
- Crystal distribution, count, and density analysis
- Fuseview™ fused-glass process seal
- Canty Vector System included
- Available 4–20 mA, OPC, and Modbus outputs
- Configuration-dependent temperature and vacuum control integration
Ideal Applications
- Monitoring crystal growth from nucleation through full development
- Controlling and evaluating the seeding stage
- Detecting seeding problems and spontaneous nucleation
- Measuring crystal size, shape, count, density, and distribution
- Visually verifying crystallization stages
- Integrating crystal-analysis results with reactor temperature and vacuum controls
- Supporting crystallization control before downstream filtration
Product Family Includes
- CrystalScope™ PAT Particle Sizing System
Industries Served
- Chemical
- Pharmaceutical
Related Products
Canty Process Technology Particle Size and Shape Analysis (PSSA) System in the Food Industry
Canty Process Technology Sugar Particle Size and Shape Analysis (PSSA) System
Canty Process Technology CrystalScope PAT Particle Sizing System
Canty Process Technology SolidSizer with Color Analysis Analyzer

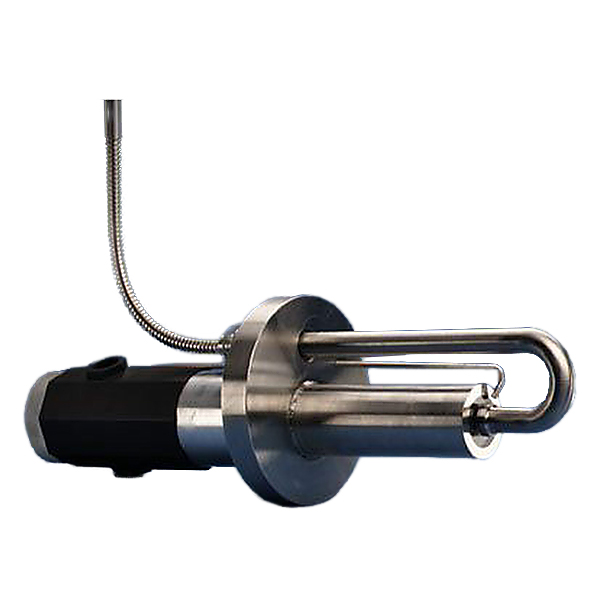

Canty Process Technology Sugar Pan – SugarScope System
