Reotemp Diaphragm Seals isolate pressure instruments from process media that could otherwise contact the sensing instrument directly.
A flexible diaphragm separates the process fluid from the instrument while transmitting process pressure through the filled seal assembly.
The family includes threaded, flanged, flush-face, flow-through, ring and other configurations for use with compatible pressure gauges, pressure transmitters, pressure switches and related pressure instrumentation.
Key Characteristics
- Isolates pressure instrumentation from corrosive, abrasive, viscous, clogging, hot or otherwise challenging process media
- Available in threaded, flanged and other process-mounting configurations
- Includes metallic and non-metallic diaphragm seal designs
- Supports direct instrument mounting and configurations using capillary connections
- Available offline, flush-face, flow-through, ring and other application-specific designs
- Compatible with pressure gauges, pressure transmitters, pressure switches and other pressure instruments
Ideal Applications
- Isolating pressure instruments from corrosive or abrasive process fluids
- Pressure measurement involving viscous or clogging media
- Applications requiring separation of pressure instrumentation from process fluid
- Installations requiring threaded or flanged diaphragm seal connections
- Flow-through pressure measurement applications
- Applications requiring flush-face, extended, ring or specialty mounting configurations

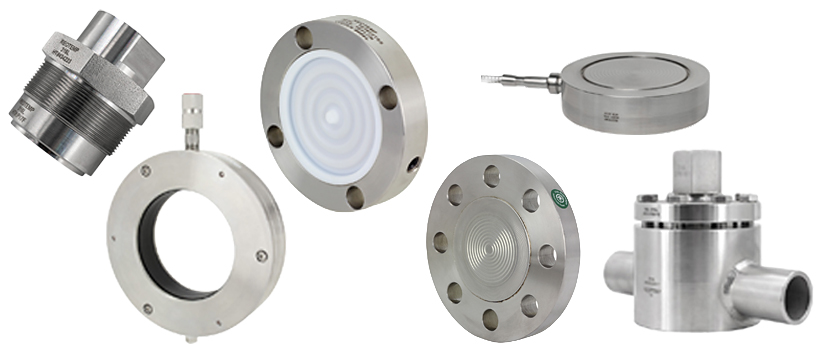

Product Family Includes
- Threaded Offline and Flanged Offline Diaphragm Seals
- High-accuracy Threaded and Flanged Diaphragm Seals
- Flush-face, Extended and Pancake-style Diaphragm Seals
- Threaded, Flanged and Welded Flow-through Diaphragm Seals
- Isolation Ring and Bolt-through Ring Seals
- Pulp and Paper and Saddle-mount Diaphragm Seals
- Welded Mini Diaphragm Seals
Industries Served
- Water and Wastewater
- Chemical Processing
- Food and Beverage
- Dairy
- Pharmaceutical
- Mining
- Pulp and Paper
