The Canty Process Technology MacroFlow™ Particle Sizing System is a vision-based analyzer for measuring suspended particles on a macro scale.
The system analyzes two-dimensional particle size, shape, distribution, and color in sample or continuous-flow arrangements. It supports a particle size analysis range of 10 µm to 2,400 µm in a linear flow path or recirculating loop and is designed for laboratory use under varying temperature and pressure conditions.
A high-speed CCD/CMOS imaging device, adjustable macro-zoom optics, integrated cold fiber-optic lighting, CantyVision™ software, and a fused-glass pressure barrier support image capture and particle analysis.
Laminar-flow and high-pressure types are available, along with configuration-dependent options for dilution, mixing, thermal regulation, and flow control.
Key Characteristics
- Real-time analysis of particle size, shape, distribution, and color
- 10 µm to 2,400 µm particle size analysis range
- CCD/CMOS-based high-speed imaging device
- Adjustable macro-zoom lens system
- Fused-glass pressure barrier
- Sample or continuous-flow analysis
- Linear-flow or recirculating-loop operation
- Horizontal or vertical installation orientation
- Standard 3/4” sanitary flow connections
- Optional in-line dilution port, instantaneous mixing port, thermal regulation, and bypass loop
Ideal Applications
- Particle size, shape, and distribution analysis of suspended particles
- Dissolving-rate measurement for soluble materials
- Polymer bead growth and shape analysis
- Mining and aggregate particle sizing
- Laboratory or in-line color analysis
- Gel, emulsion, and bubble classification
- Micro-reactor analysis
- Percent-solids and turbidity analysis
- End-product quality control and lot certification
Product Family Includes
- Laminar Flow Type
- High Pressure Type
Industries Served
- Mining
- Aggregates
Related Products
Canty Liquid Particle Size Analyzers
Canty Process Technology Lab Dilution Particle Sizing System
Canty Process Technology Lab TruFlow Particle Sizing System
Canty Process Technology Immersion Particle Size Measurement System

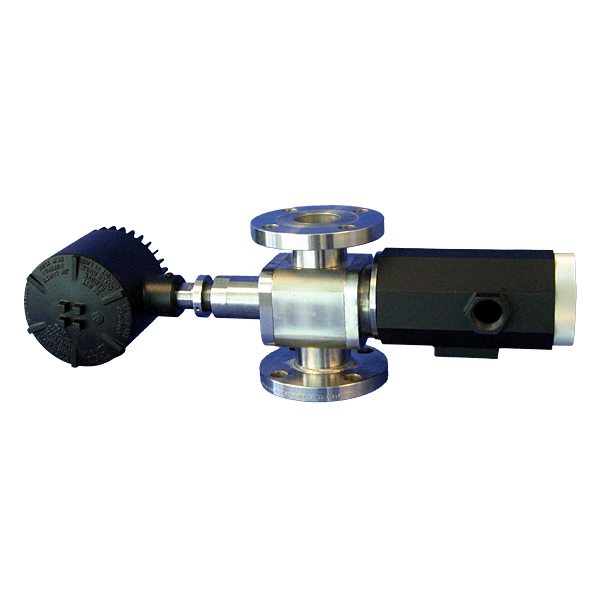

Canty Process Technology InFlow™ Particle Sizing System
