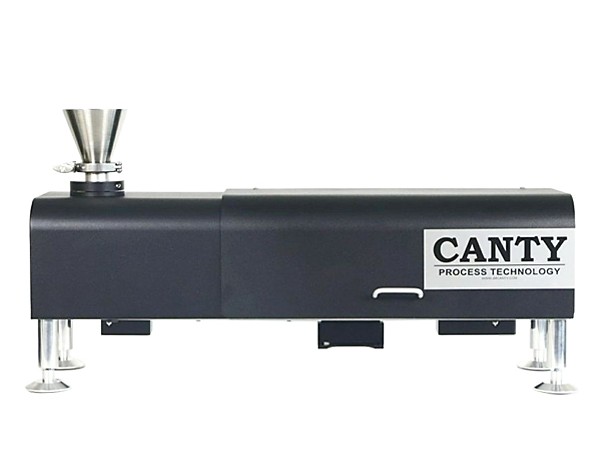

Canty Process Technology Lab SolidSizer™

Measurement results can be correlated with conventional sieve analysis, while multiple virtual sieve-stack distributions allow different products or quality-control requirements to be evaluated using one instrument.

The system also supports particle-shape characterization and electronic data output for local storage or transfer to laboratory information management systems.

Key Characteristics

• Two-dimensional particle size, shape, and distribution analysis
• Measures area, perimeter, major axis, minor axis, aspect ratio, circularity, convexity, solidity, and sphericity
• Analyzes dry granular particles measuring 20 microns and greater in adjustable ranges
• Standard laboratory configuration supports adjustable sieve-correlation ranges between 500 and 7 mesh
• Correlates dynamic imaging measurements with conventional sieve results
• Non-destructive analysis completed in as little as two minutes
• Multiple virtual sieve stacks can be configured in CantyVision™ software
• Automatic calibration and focusing
• Data output through .csv or ODBC for local storage or transfer to LIMS systems
• Front and back lighting available for color analysis

Ideal Applications

• Laboratory measurement of dry-particle size, shape, and distribution
• Correlating image-based particle measurements with sieve-analysis results
• Replacing or supplementing routine sieve analysis
• Comparing minor-axis, major-axis, and particle-shape measurements
• Frac sand and proppant analysis
• Catalyst particle analysis
• Glass-bead analysis
• Fertilizer, aggregate, and sugar particle analysis
• Quality-control testing using multiple virtual sieve-stack distributions

Product Family Includes

• SolidSizer™
• CoreUnit™

Industries Served

• Chemical
• Metal Production
• Mining
