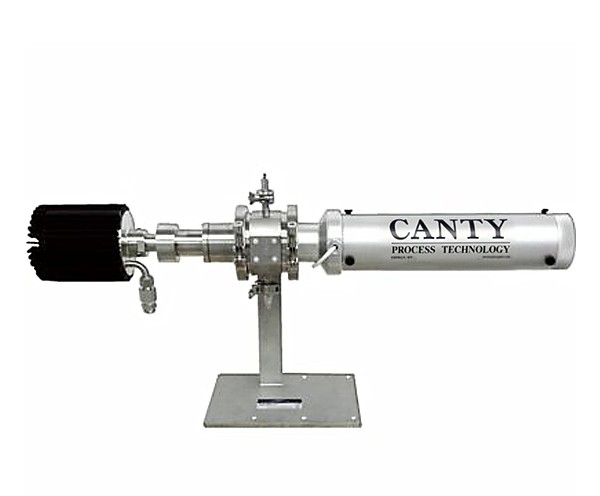

Canty Process Technology PharmaFlow™ Particle Sizing System is an image-based analyzer developed for particle size, shape, distribution, and concentration analysis using small-volume samples.
The system provides microscopic, non-destructive viewing and two-dimensional particle analysis when used with CantyVisionClient™ Software.
PharmaFlow™ can be used as a laboratory unit or configured for on-line and at-line sampling through sanitary Tri-Clamp™ connections.
Precision optics, integral lighting, a high-speed CCD imaging device, and the flush FuseView™ product-contact window support particle visualization and analysis across multiple sample-handling configurations.
Key Characteristics
- Particle size, shape, distribution, and concentration analysis
- Small sample analysis with volumes down to 5 mL
- Two-dimensional, image-based analysis with CantyVisionClient™ Software
- Microscopic, non-destructive particle viewing
- High-speed CCD imaging device with precision optics
- Adjustable zoom, focus, and lighting
- Multiple objective lens packages for different particle-size ranges
- High-magnification optics capable of sizing particles down to 0.7 micron
- FuseView™ flush product-contact barrier
- Quick-release Tri-Clamp™ body connections for cleaning
- Laboratory, on-line, at-line, syringe-pump, and peristaltic-pump configurations
- Available Tri-Clamp™ connections for CIP or SIP configurations
Ideal Applications
- Crystallization research
- Protein analysis
- Fermentation
- Precipitation analysis
- Cell growth and count analysis
- Amorphous dissolution studies
- Dissolving and solubility analysis of solids
Product Family Includes
- PharmaFlow™ Laboratory Configuration
- PharmaFlow™ On-line and At-line Configuration
- PharmaFlow™ Syringe Pumping System Configuration
- PharmaFlow™ Peristaltic Pumping System Configuration
Industries Served
- Pharmaceutical
- Chemical
