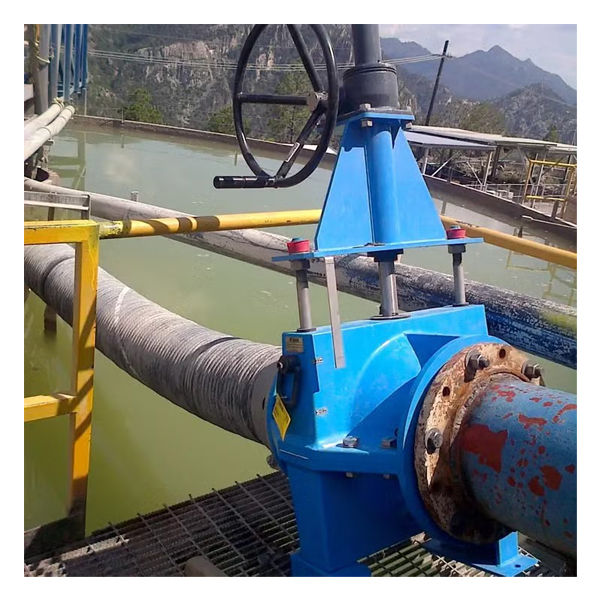

RF Valves Manual Pinch Valves are mechanically actuated flow control valves designed to regulate or isolate media by compressing a flexible elastomer sleeve.
These valves are widely used in applications involving abrasive slurries, corrosive fluids, and solids-laden media where traditional valve designs may experience excessive wear or clogging.
The manual actuation mechanism—typically a handwheel or lever—allows operators to directly control the opening and closing of the valve, providing reliable shutoff and throttling capability without the need for external power sources.
The core design of Manual Pinch Valves centers on the sleeve as the only wetted component, which helps minimize maintenance requirements and reduces the risk of contamination. When actuated, the valve compresses the sleeve to restrict or completely stop flow, then returns to its original shape when released. This simple yet effective operation supports consistent performance in demanding environments where durability and ease of maintenance are critical.
Manual Pinch Valves are commonly selected for installations where automation is not required and where straightforward, dependable flow control is preferred.
Key Characteristics
- Valve Type: Manual pinch valve
- Actuation Method: Handwheel or lever-operated
- Primary Function: Flow isolation and throttling
- Sealing Mechanism: Elastomer sleeve compression
- Wetted Components: Sleeve only
- Flow Path: Full port when open
- Maintenance Profile: Minimal internal components in contact with media
- Installation: Suitable for inline piping systems
Ideal Applications
- Abrasive slurry handling
- Corrosive fluid control
- Solids-laden media transport
- Chemical processing lines
- Mining and mineral processing operations
- Wastewater and water treatment systems
Industries Served
- Mining and Minerals
- Chemical Processing
- Water and Wastewater Treatment
- Power Generation
- Pulp and Paper
- General Industrial
